Braided Rubber Tube Cutting Machine Fast Speed High Efficiency 50hz 60hz Automatic Hose Cutter

Brand Name : FY

Model Number : FY-QG-38

Certification : CE

Place of Origin : Shanghai,China

MOQ : 1 set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 300 sets per month

Delivery Time : 2-7 working days

Packaging Details : export standard wooden box

Usage : hose cutting/skiving

Condition : New

Warranty : 1 Year

Dimension(l*w*h) : 640*480*480 mm

Voltage : 100v-415v 50/60hz

Power(w) : 2.2kw/3kw

Color : Blue,As the Picture(Also can be changed),Customised

Packing : carton box

crimping range : 6-51mm

High light : Multifunction Hose Cutting Machine, QG-38 Hose Cutting Machine, QG-38 hydraulic hose cutter

Contact Now

Fast speed and high efficiency hydraulic braided rubber hose tube pipe cutting machine

DECRIPTION

hydraulic hose cutting machine for rubber hosehydraulic hose cutting machine for rubber hose

hydraulic hose crimping machine p32 finn power hose crimping machine

Product display

FY-QG-38 is a hose cutting machine which also have the ability to strip hose rubber.

The features of our hydraulic rubber hose cutting machine
1.Easy operating and portable
2.Fast speed and high efficiency
3.Low noise and low maintenance cost
4.High quality and favourable price

Cutting rarge	6-51 mm(1/4-2"imer diameterofhose)
Material of blade	HSS(High-speed steel)
Accuracy	0.01 mm
Output volume ofpump	2.5L/5L/10L(Optioral)
Motor power	3kW/4kW(Optional)
Voltage	220V/380V/415V(Customizable)
Work effciency	1500pcs/h
Machie dimersion	760510850mm
Package dimersion	860610950mm
Net weight	90kg
Gross weigt	100kg

ADVANTAGES

1. Movable wheel to make the machine more convenient to move;

2. Human design handle, save opetator power;

3. Scale on the skiving tool, easy to adjust the skiving depth;

4. High quality copper wire aluminium motor, no heat exceed even afetr using for a long time.

TECHNICAL DATA

Model	FY-QG-38 Hose Cutting/Skiving Machine
Hose Size	1/4''-2''
Motor Power	2.2kw-3kw
Voltage	100v-415v 50/60hz
Work Efficiency	1500pcs/h
gross weight	65kg
Length	640mm
Width	480mm
Height	480mm
Net Weight	55kg

Braided Rubber Tube Cutting Machine Fast Speed High Efficiency 50hz 60hz Automatic Hose Cutter

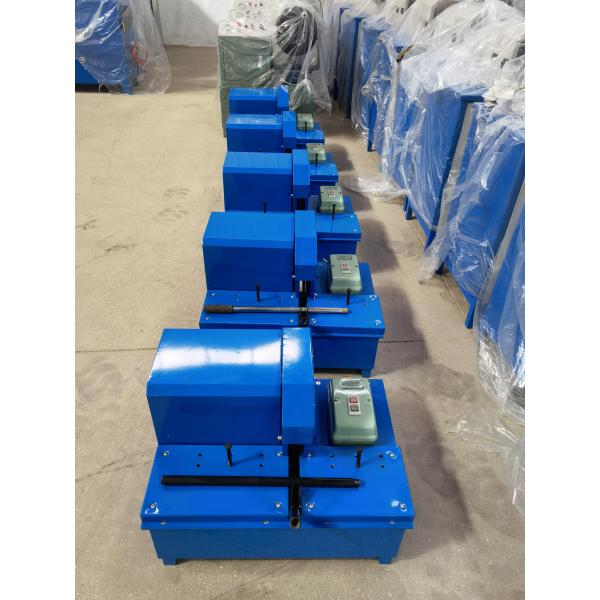

► PICTURES

Braided Rubber Tube Cutting Machine Fast Speed High Efficiency 50hz 60hz Automatic Hose Cutter

► APPLICATION

FY-QG-51 is hose cutting machine which also have fucntion of hose rubber stripping. It is an essential device for hose assembly making before crimping. Cutting is to cut the hose to the needed length for hydraulic system connecting, skiving is to strip the inner or out rubber layer, so that the stainless steel braided hose can be connect well with ferrule and fittings.

Braided Rubber Tube Cutting Machine Fast Speed High Efficiency 50hz 60hz Automatic Hose Cutter

Cutting rarge	6-51 mm(1/4-2"imer diameterofhose)
Material of blade	HSS(High-speed steel)
Accuracy	0.01 mm
Output volume ofpump	2.5L/5L/10L(Optioral)
Motor power	3kW/4kW(Optional)
Voltage	220V/380V/415V(Customizable)
Work effciency	1500pcs/h
Machie dimersion	760510850mm
Package dimersion	860610950mm
Net weight	90kg
Gross weigt	100kg
